DermaLab Colorimeter - for accurate measurements of color, ITA, pigmentation and erythema
All you need when you need to know about colour
Be the expert with accurate skin colour measurement
Gain more clients by demonstrating your expert knowledge with valid data. Deliver accurate and detailed colour measurements with the Colorimeter DSM-4 - your most professional quality tool for skin colour assessment.
4 simultaneous skin color measurements with 1 instrument

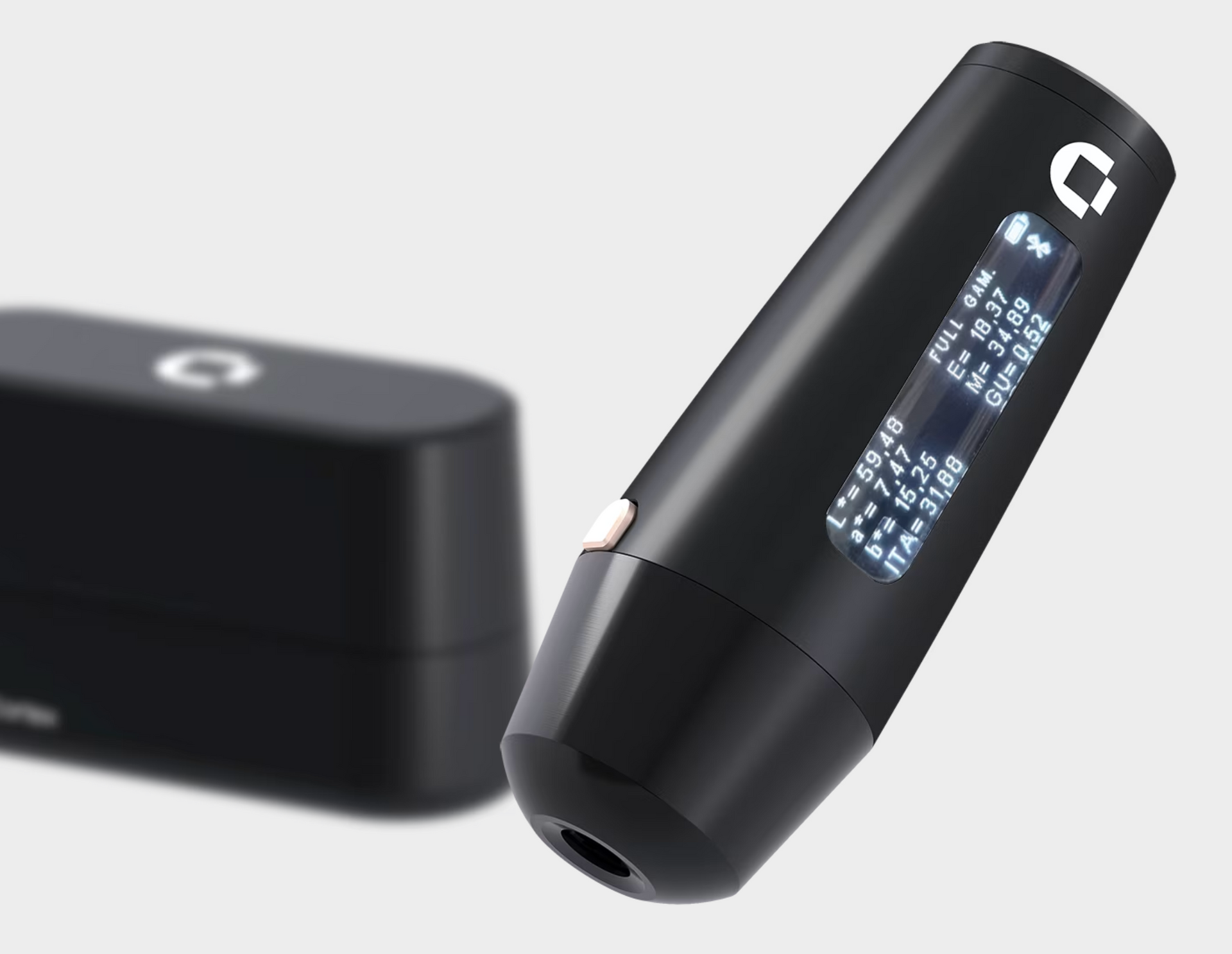

The Colorimeter DSM-4 is based on the newest technology and provides you with accurate skin optimised measurements for perceived colour, ITA, pigmentation, and erythema simultaneously and at the same location.
The colorimeter is able to detect extremely small colour changes in the skin, and it is ideal for evaluation of skin eg. before and after laser treatments. The colorimeter is highly recognised in both research studies and in pharmaceutical and cosmetic efficacy testing. Now it is available in a highly updated version - the DSM-4 model.
The Colorimeter DSM-4 is equipped with advanced software with automatic classification of skin phototype (ITA) in 6 groups: very light, light, intermediate, tan, brown, and dark. High quality working standards (white, zero, and gloss) ensure reliable skin colour measurements over time. It has an intuitive and portable calibrator, which is built into the storage case. The modern portable design of the Colorimeter DSM-4 and the integrated calibrator is perfect for working remote. The Colorimeter DSM-4 is delivered with software for Windows on USB flashdrive.
<1
second to determine skin colour and phototype
<1
colour difference
(ΔE00)
Proven accuracy
“The Colorimeter DSM-4 has proven to be an effective tool for accurately measuring skin pigmentation. We have verified this through a recent comparative study, where the DSM-4 demonstrated its excellent accuracy.”
The DSM-4's optimized design for skin color measurements ensures accurate ITA values, making it particularly useful to distinguish between individuals that differ in their degree of pigmentation.
Additionally, it allows for reliable estimation of differences in sun exposure by comparing constitutive and facultative pigmentation. This makes the DSM-4 a valuable instrument for both clinical and research settings.”
Dr. Gary Grove
Cyberderm
USA
Specifications
45°/0° Colorimeter with full visible spectrum color sensor
Principle: 4 x 16 color sensor elements
Light source: 4 x D65 LED illuminants with CRI > 98
Color space: CIE XYZ, L*a*b*, L*C*h, sRGB
Color difference: ΔEab <2 and ΔE00 <1
60° specular gloss (GU) measurement
Measurement aperture: 8 mm
Measurement area: 50 mm2
Pigmentation (melanin): 0.0 – 99.9
Erythema (redness, hemoglobin): 0.0 – 99.9
Photo type classification: Individual Typology Angle (ITA)
Wireless data transfer
Special correction matrix optimised for skin

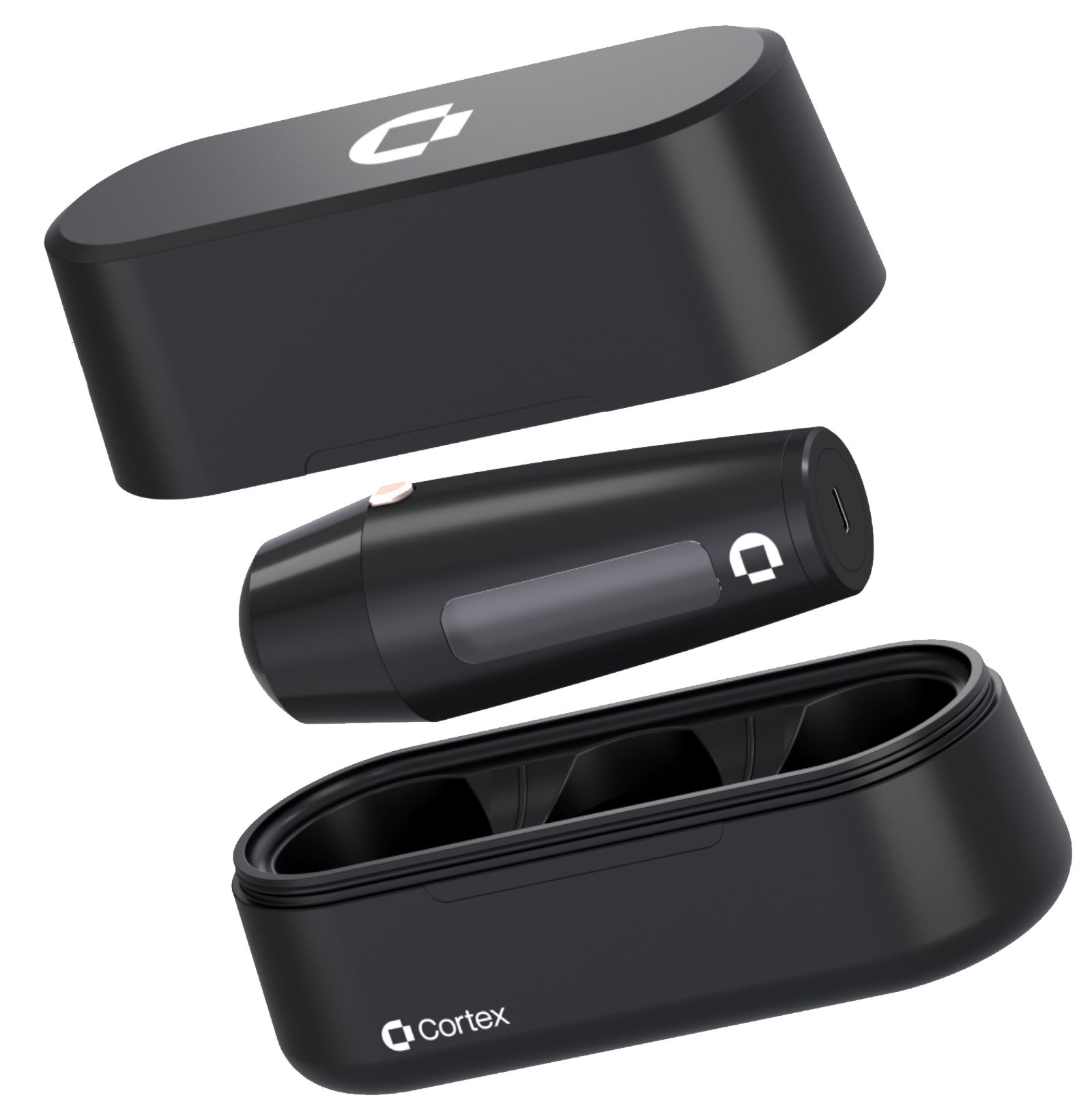

Portable calibrator
Software for Windows 10+11
Warranty: 1 year. Extended upgrade and warranty program available.
The software

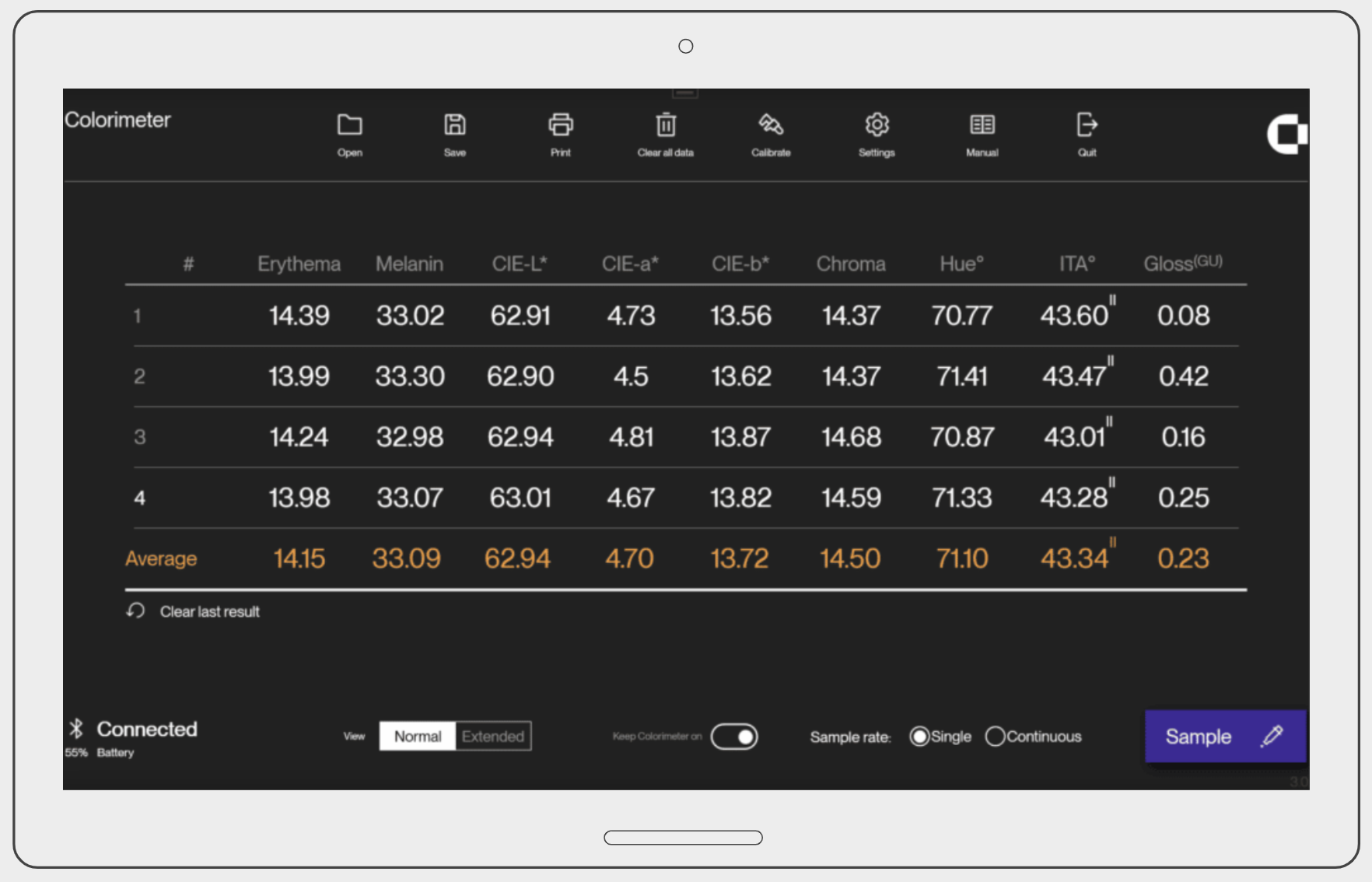

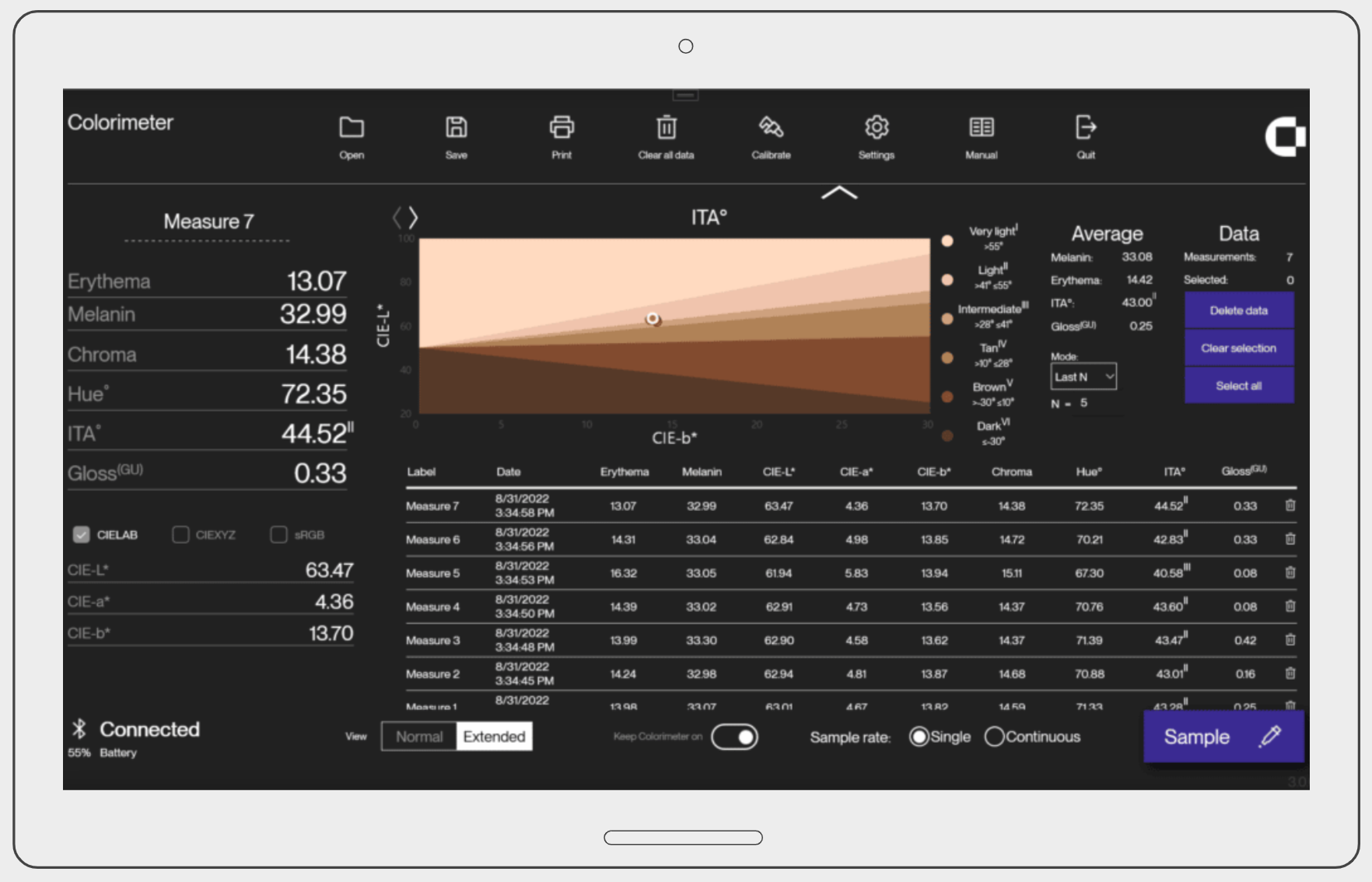

The software is intuitive and very easy to use. Conducting a skin analysis takes just a few minutes, even for beginners. The system guides you step by step through the skin analysis process. Below, you can see how the software looks.
Customisable
You can customise your settings to get a more detailed view of your samples, and export your data with just one click.
Automatic classification
The advanced Colorimeter DSM-4 software includes automatic classification of skin phototype (ITA) in six groups: very light, light, intermediate, tan, brown and dark.
Customisable
You can customise your settings to get a more detailed view of your samples, and export your data with just one click.
